Point of Interest

In this section:

The Point of Interest page shows in depth information about excursions at a specific point of interest (POI), including excursions that occurred on the inbound or outbound legs:

  • Heat map showing location of excursions at this POI.

  • Temperature trend of all selected shipments after arrival at this POI.

  • Details about excursions at this POI as well as on inbound or outbound legs.

Pinpoint Excursions dashboard - Point of interest page

Note

A point of interest (POI) is a a customer defined location, airport or harbor that shipments have traveled to and/or from.

Current POI

Pinpoint Excursions - POI - Selected POI

Point of interest: Name of POI, type of POI and location of POI.

Change which Point of Interest to view here

Pinpoint Excursions - POI - Select another POI

You can use the list to select another POI.

In the list, click another POI. The tab will update with data about the selected POI.

Tip

Start typing in the search box to filter the POIs in the list.

Pinpoint Excursions - POI - Shipments delivered filter

You can filter the data in the page by the following parameters:

Item

Description

Shipments delivered

Temperature range

Temperature range. Configured temperature range for selected shipments. Click one or more from the list.

Pinpoint Excursions - POI -Map of POI indicating location of excursions and graph showing temperature measurements of shipments while at this POI

Details about this POI: Map showing location of excursions and graph showing temperature of shipments after arrival at the POI.

Pinpoint Excursions - POI - Map of POI indicating location of excursions

Interactive map showing exact location of excursions at this POI.

Tip

You can hover over a POI to see the following information:

  • geocoordinates of location

  • name of location

  • number of shipments with excursions at location

  • You can zoom in and out on the map:

    • To zoom in on the map, do one of the following:

      • Double-click the map.

      • Scroll up with the scroll button on your mouse.

    • To zoom out on the map, scroll down with the scroll button on your mouse.

  • You can resize the map:

    • To see a larger map, click Map focus mode - click to see a larger map (focus mode).

      A larger map appears.

    • To return to the dashboard, click Back to report.

      The previous page appears.

Pinpoint Excursions - POI - Graph showing temperature measurements of shipments while at this POI

Graph showing temperature measurements of shipments after arrival at this POI.

Tip

You can toggle between showing the lowest or highest temperature measurements for each hour.

  • Pinpoint Excursions - POI - Click to see lowest temperature reading for each hour in the temperature graph - click to see lowest temperature reading for each hour

  • Pinpoint Excursions - POI - Click to see highest temperature reading for each hour in the temperature graph - click to see highest temperature reading for each hour

Pinpoint Excursions - POI - Key point indicators

KPIs for this POI.

Item

Description

Shipments with excursions on inbound leg

Number of shipments with excursions on the inbound leg - the leg of the shipment before arriving at this POI.

Shipments with excursions at location

Number of shipments with excursions that occurred at this POI.

Shipments with excursions on outbound leg

Number of shipments with excursions on the outbound leg - the leg of the shipment after leaving this POI.

Total shipments with excursions near POI

Number of shipments with excursions that occurred at this POI or on inbound or outbound legs.

Pinpoint Excursions - POIs - Graph - monthly shipments with excursions by delivered

Trend for number of shipments with excursions at this POI in the period selected in the filter above.

Tip

You can hover over images/graphs to see details in a pop-up.

Pinpoint Excursions - POI - Table and filters

List of segments going through this POI. A segment is part of a shipment that a contains a POI as well as one or both of an incoming leg and/ or an outgoing leg.

Details about shipments on segment

Click to open selected lane in Shipment details page

Select a segment in the table below and click the button to view a list of shipments on the selected segment in the Shipment details page.

Pinpoint Excursions - POI - Table filter

You can filter the data in the page by the following parameters:

Tip

To filter the list of options, start typing in the search field.

Item

Description

Temperature range

Temperature range. Configured temperature range for selected shipments. Click one or more from the list.

Transportation mode

Mode of transportation of the shipment. Click one or more from the list:

Business unit

Business unit of the shipment.

Pinpoint Excursions - POI - Table showing incoming and outgoing legs for this POI and details about excursions on those legs

Tip

The background color of each location or leg indicates the ratio of excursions that occur on that POI/ leg. The darker the red color, the higher the ratio of excursions on the segment.

POI/ leg has no excursions - POI/ leg has no excursions.

POI/ leg has between 1–24% of excursions - POI/ leg has 1–24% of excursions.

POI/ leg has between 25–49% of excursions - POI/ leg has 25–49% of excursions.

POI/ leg has between 50–74% of excursions - POI/ leg has 50–74% of excursions.

POI/ leg has between 75–100% of excursions - POI/ leg has 75–100% of excursions.

You can do the following with data in tables:

  • Export data:

    • Export the data with the current layout

    • Export summarized data:

      • as a comma separated values file, .csv

      • as an Excel file, .xlsx

  • Show as a table

  • Spotlight

  • Get insights

  • Sort descending

  • Sort ascending

  • Sort by column

Tip

You can click any column header to sort the contents of the table by the contents of that column. An arrow indicates the column the table is sorted by: An arrow pointing up indicates ascending order, and an arrow pointing down indicates descending order. Click the column header to toggle between the two.

Tip

To filter the list of options, start typing in the search field.

Tip

Hover over a record in the table and a pop-up will appear with a breakdown of the excursions in this lane segment as well as the full location and leg names if those are not completely visible.

Item

Description

Inbound leg

Inbound leg; leg shipment took to get to POI. Name of location from which the shipment came to the POI.

Note

The background color of each location or leg indicates the ratio of excursions that occur on that leg.

POI

Name of POI.

Note

The background color of each location or leg indicates the ratio of excursions that occur on that leg.

Outbound leg

Outbound leg; leg shipment took to leave POI. Name of location to which the shipment went from the POI.

Note

The background color of each location or leg indicates the ratio of excursions that occur on that leg.

Shipments with excursions

Number of shipments with excursions on this segment.

Shipments

Number of shipments on this segment.

Excursion ratio

Ratio of shipments with excursions on this segment.

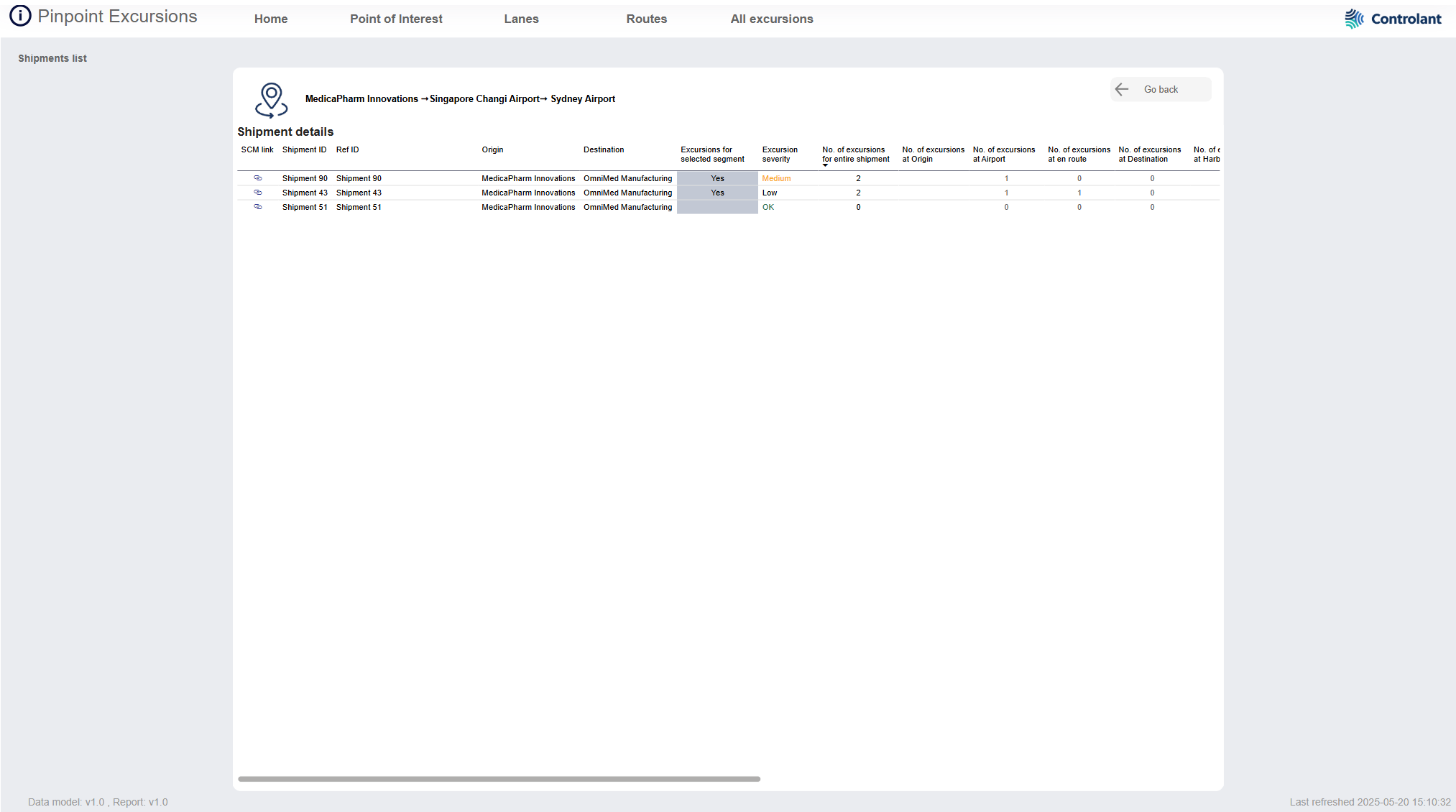

Pinpoint Excursions dashboard - Point of interest - Shipment Details page

The Shipment details page contains a list of all shipments on the selected points of interest and adjacent locations (segment).

Note

This page is a drill through page and can only be accessed from the Point of Interest page.

To open the Shipment details page, in the Point of Interest page, in the details table, select a segment and click See list of shipments. The Shipment details page appears.

To return to the page, click Go back.

Route analysis - Route breakdown - Return to Routes page

The previous page appears.

Note

To see all of the contents of the Shipment details table, you may need to scroll right.

Tip

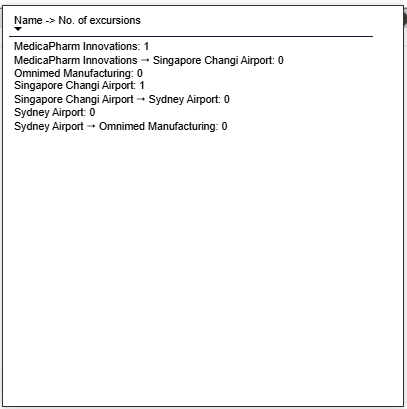

Hover over a record in the table and a pop-up will appear with a list of all locations on the segment and the number of excursions at each location:

Pinpoint Excursions dashboard - Point of interest - Shipment Details - excursions details for segment

Shipment details table

You can do the following with data in tables:

  • Export data:

    • Export the data with the current layout

    • Export summarized data:

      • as a comma separated values file, .csv

      • as an Excel file, .xlsx

  • Show as a table

  • Spotlight

  • Get insights

  • Sort descending

  • Sort ascending

  • Sort by column

Tip

You can click any column header to sort the contents of the table by the contents of that column. An arrow indicates the column the table is sorted by: An arrow pointing up indicates ascending order, and an arrow pointing down indicates descending order. Click the column header to toggle between the two.

Table 18. Shipment details table

Item

Description

SCM link

Link to shipment in Supply Chain Monitoring (SCM) system.

Shipment ID

Unique identifier of shipment.

Ref Id

Customer created reference to shipment.

Origin

Origin location of shipment.

Destination

Destination location of shipment.

Excursions for selected segment

Number of excursions that have occurred on the selected segment.

Excursion severity

Severity of excursions on the selected segment in this shipment:

  • Low

  • Medium

  • High

In case of multiple excursions, this will show the severity of the highest severity excursion.

No. of excursions for entire shipment

Number of excursions that have occurred on this shipment.

No of excursions at Origin

Number of excursions that have occurred at the origin location of the shipment.

No of excursions at Airport

Number of excursions that have occurred at an airport location on the shipment.

No of excursions at en route

Number of excursions that have occurred en route on the selected segment (in legs between points of interest).

No of excursions at Destination

Number of excursions that have occurred at the destination location of the selected segment.

No of excursions at Harbour

Number of excursions that have occurred at a harbor location on the selected segment.

Shipped date

Date shipment was shipped, in in D.M.YYYY HH:MM:SS format.

Delivered date

Date shipment was delivered, in in D.M.YYYY HH:MM:SS format.

Carrier

Name of carrier, as configured in custom properties in ​Supply Chain Monitoring.

From country

Origin country of shipment.

To country

Destination country of shipment.

Temperature range

Temperature boundaries configured for shipment.

Route

Route of shipment - indicating each location along the way.
