Site details page

In this section:

You can use the Clinical Storage Monitoring site view tab to view the status of a selected site.

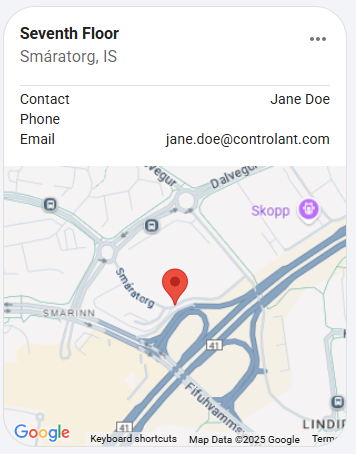

Site details

Details about the current site - Clinical storage monitoring

You can view details about the site you are viewing.

Table 6. Site details

Item	Details
Name	Name of site
Location	Location of site.
	Click to perform an action on the selected site: Edit site
Contact	Name of site contact.
Phone	Phone number of site contact.
Email	Email address of site contact.
Map	Image showing location of site on a map.

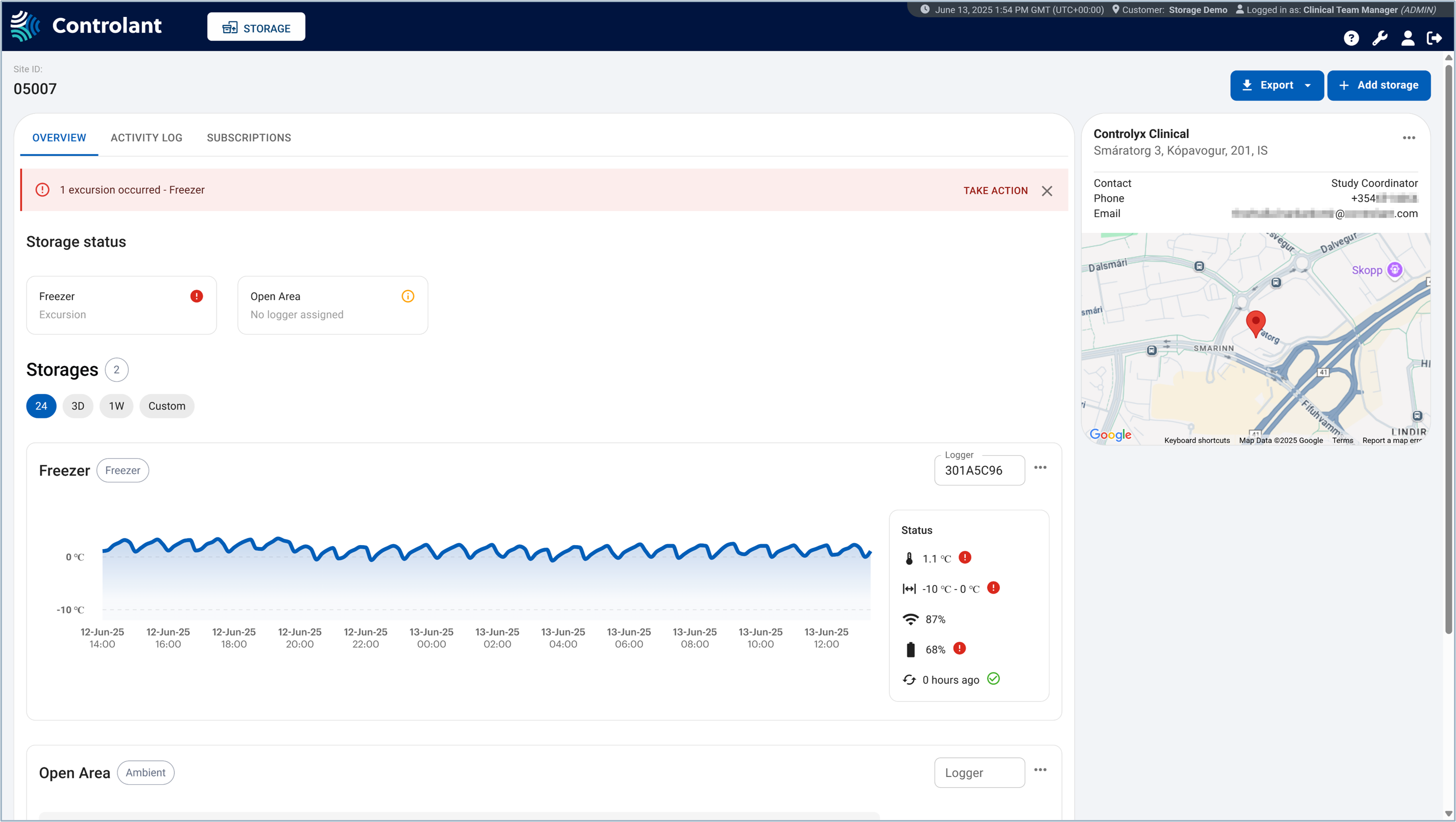

Overview tab

You can view a quick overview of the site.

Temperature excursions

Number of unresolved excursions + take action - banner on front page of Clinical storage monitoring site

Item	Description
Excursions	List of unresolved temperature excursions for storage unit. Note To resolve an excursion, do the following: Click Take action. The Resolve excursion dialog appears. In the Comment box, type your comment about the excursion. Note Refer to local SOP, protocol or sponsor guidelines when writing the comment. Click Resolve excursion.

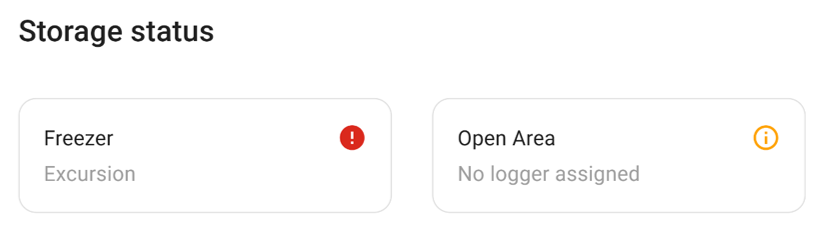

Storage status

For each storage unit at the site, status of the storage unit.

Item	Description
Name	Name of the storage unit,
Status	Status of storage unit: No measurements Excursion
Storages	Number of storage units on this account.
Sites	Number of sites on this account.
Unresolved excursions	Number of unresolved excursions on this account.

Storages

Details about each storage unit at the site.

Storage overview

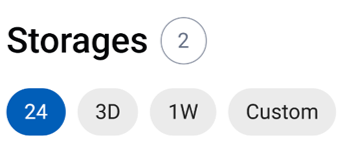

Table 7. Storage overview + filter

Item	Description
Number	Number of storage units at this site.
Period	Period you want to filter for: 24 - view data for the last 24 hours. 3D - view data for the last 3 days. 1W - view data for the last 1 week. Custom - view data for a custom period. To set the custom period, do the following: To set the start date of the period, in the Start date box, type a date or click and select a date. Date format is `MM/DD/YYYY`. To set the end date of the period, in the End date box, type a date or click and select a date. Date format is `MM/DD/YYYY`.

Item

Description

Number

Number of storage units at this site.

Period

Period you want to filter for:

24 - view data for the last 24 hours.
3D - view data for the last 3 days.
1W - view data for the last 1 week.
Custom - view data for a custom period.
To set the custom period, do the following:
1. To set the start date of the period, in the Start date box, type a date or click and select a date.
  Date format is MM/DD/YYYY.
2. To set the end date of the period, in the End date box, type a date or click and select a date.
  Date format is MM/DD/YYYY.

Storage details

For each storage, you will find the following details:

Item	Description
Name	Name of the storage unit,
Type	Type of storage: Fridge Freezer Ambient
Logger	Device ID of device monitoring the storage unit.

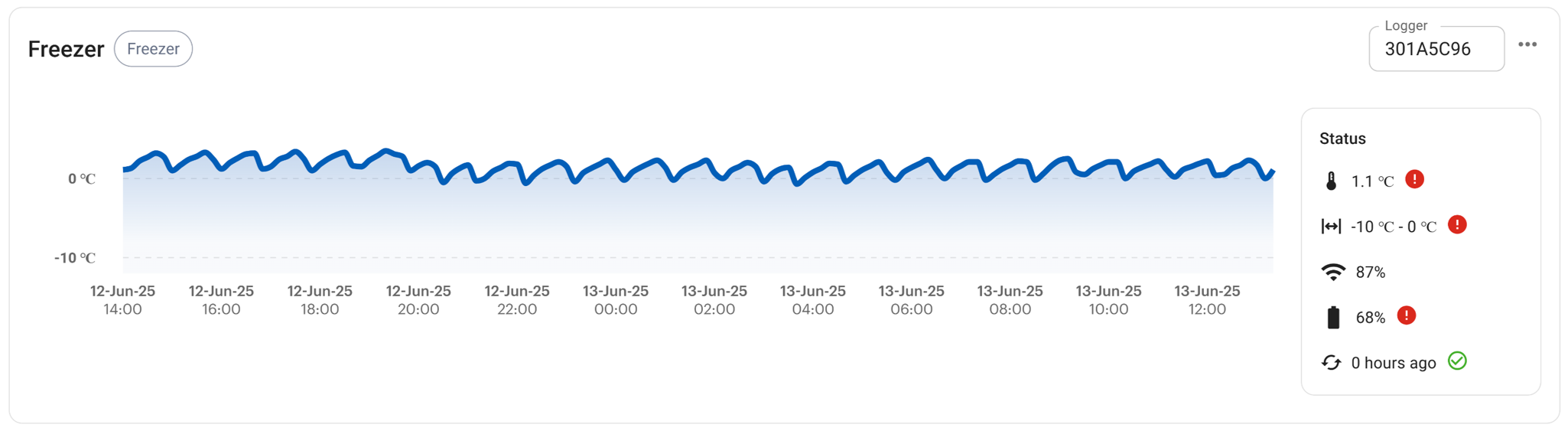

Temperature measurements	Graph showing temperature measurements for the storage unit. Note Red dots indicate an excursion was registered.

Status area	Status of storage unit at a glance:
Temperature	Last temperature measurement that has been uploaded to the Cloud.
Temperature profile	Temperature profile configured for this storage unit.
Mobile signal	Strength of mobile signal, in %.
Battery	Remaining battery percentage.
Last connection	Time since device last uploaded data.

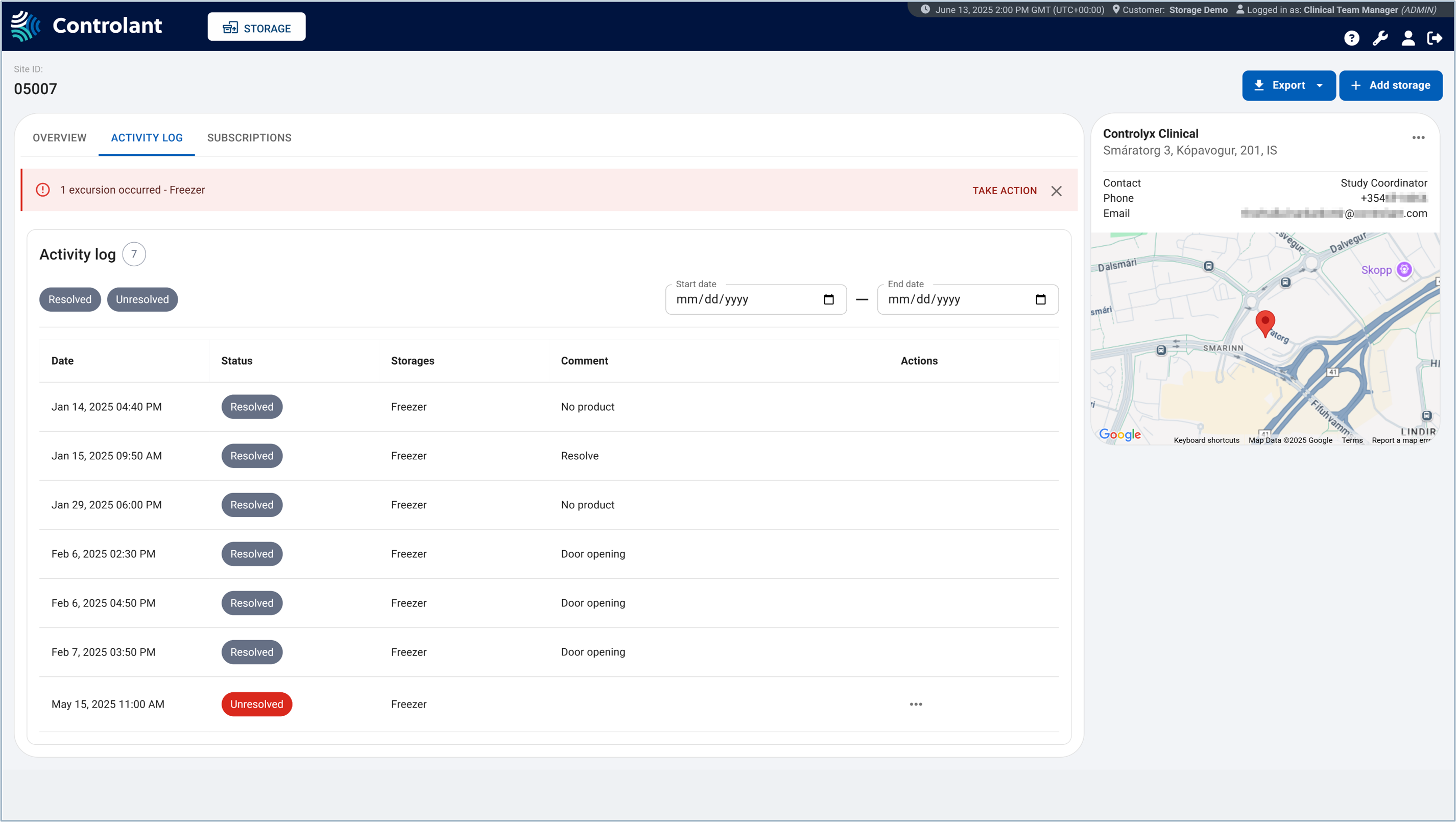

Activity log tab

You can view a log of all activities at the site.

Temperature excursions

Item	Description
Excursions	List of unresolved temperature excursions for storage unit. Note To resolve an excursion, do the following: Click Take action. The Resolve excursion dialog appears. In the Comment box, type your comment about the excursion. Note Refer to local SOP, protocol or sponsor guidelines when writing the comment. Click Resolve excursion.

Activity log

You can filter the activities you want to see:

Table 8. Activity log filters

Item	Description
Number	Number of activities for this site or storage unit.
Resolved	Click to filter results by resolved temperature excursions.
Unresolved	Click to filter results by unresolved temperature excursions.
Start date	Start date of date range you want to filter and view. To set the start of the date range, do the following: To set the start date of the period, in the Start date box, type a date or click and select a date. Date format is `DD-MM-YYYY`.
End date	End date of date range you want to filter and view. To set the end of the date range, do the following: To set the end date of the period, in the End date box, type a date or click and select a date. Date format is `DD-MM-YYYY`.

Table 9. Activity log

Item	Description
Date	Date activity occurred.
Status	Status of activity: Resolved Unresolved
Storages	Storage unit activity occurred in.
Comment	Comment added when resolving Blank if activity is not resolved.
Actions	Click to perform action on activity: Resolve excursion Only appears for unresolved activities.

Subscriptions tab

You can view a list of all team members with access for the site and storage unit.

Temperature excursions

Item	Description
Excursions	List of unresolved temperature excursions for storage unit. Note To resolve an excursion, do the following: Click Take action. The Resolve excursion dialog appears. In the Comment box, type your comment about the excursion. Note Refer to local SOP, protocol or sponsor guidelines when writing the comment. Click Resolve excursion.

Subscriptions

Item	Description
Number	Number of subscriptions.

Storage	Name of storage.
Type	Type of event that triggers a notification email.
User	Name of user to send notification email.
